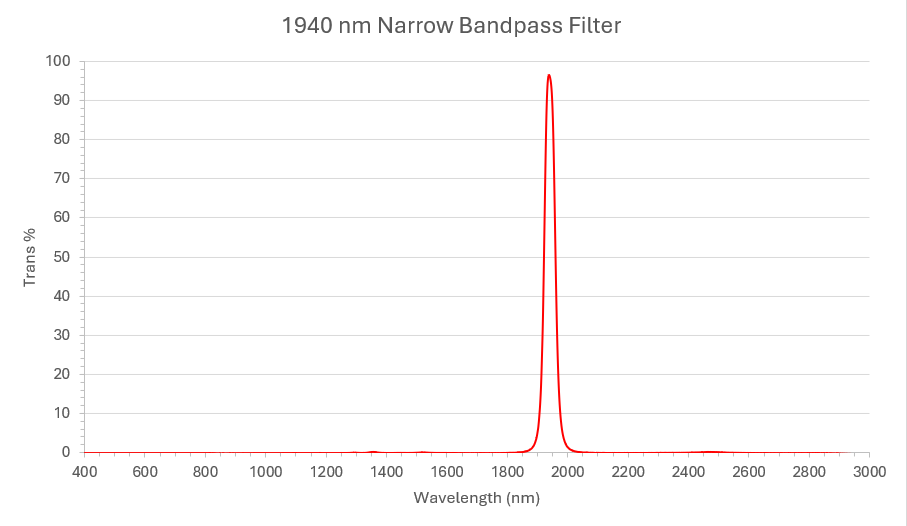

Case Study: 1940 nm Narrow Band Pass
|
Data Table |
|
|
Specification |
Value |
|
Centre Wavelength |
1940 nm +/- 7 |
|
Bandwidth (FWHM) |
40nm +/- 5 |
|
Peak Transmission |
T% >90% |
|
Blocking Range |
300 – 3000 nm |
|
Substrate |
Borosilicate Glass |
|
Dimensions |
18 mm Ø |
|
Thickness |
1 mm |
|
Scratch/ Dig |
60/40 |
|
Quantity Per Year |
25000 |
Case Study: Filter to detect water content during food production.
Challenge: The continuous measurement of water content in food production can involve a wide range of environmental conditions. The filters must be highly stable and high performing.

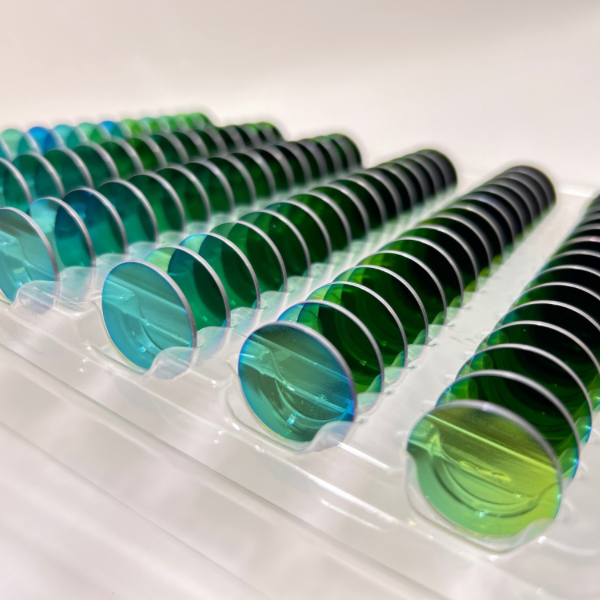

Vortex Approach: We developed a filter with a centre wavelength of 1940nm and a bandwidth of 40nm to assess a well-known water (H₂O) absorption band. Additionally, the Vortex filter is deposited with our enhanced sputtering process which makes it rugged, durable and thermally stable unlike many traditionally evaporated filters.
Outcome: In a world where food security and quality have never been under more scrutiny, our customer is assured of countless years of consistent and accurate measurement on these continuous production lines.
